P255 double extrusion head professional 3D printing dual possibilities

A dual extruder 3D printer that can print-model and support using two materials. Developed for professional use. Because of the use of soluble support materials, the 3D Gence DOUBLE P255 produces high quality and detailed prints.
What is the difference between the P255 double extrusion head and this printer?

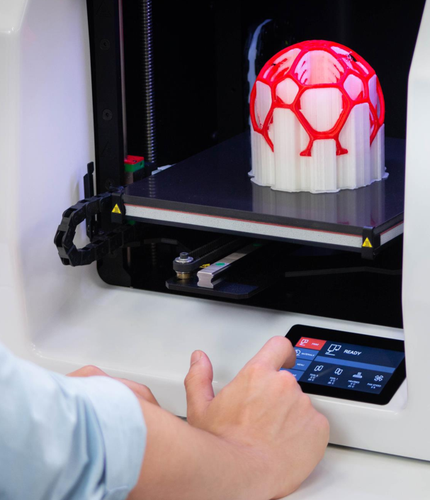

·The printed surface quality is excellent due to the use of soluble support material. · Color 4.3-inch touch screen LCD panel and material termination sensor ensure easy operation.
·The printer is made of durable components to ensure long-term mechanical reliability of the equipment. • Use a proprietary extrusion head to print even with elastic materials. · Compatible with most printing supplies on the market

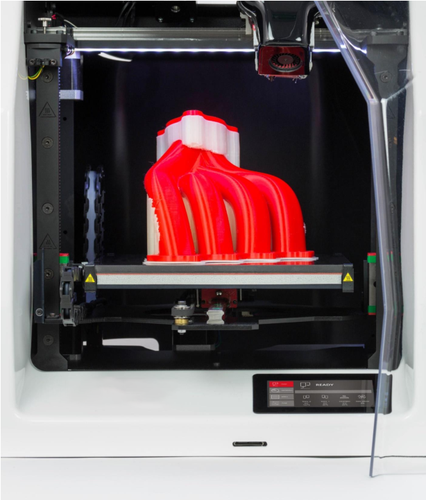

P255 double extrusion head Dual material printing
Two extrusion heads in the 3DGence DOUBLE P255 can be printed from the model and support material. This 3D printer is compatible with most of the consumables on the market. Available consumable combinations: PLA+BVOH PET+BVOH PP+HIPS NYLON+HIPS Smart ABS+HIPS

New materials are constantly being added to the basis of certified materials. These material profiles can be found in 3DGence Slicer (dedicated software).

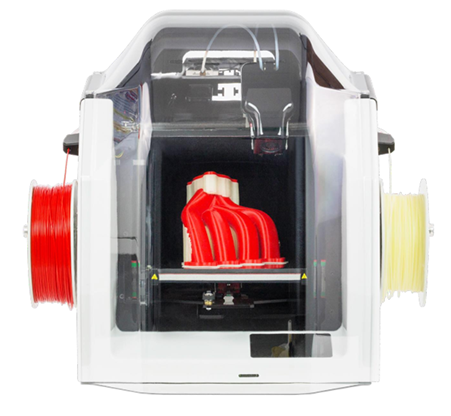

P255 double extrusion head Support material

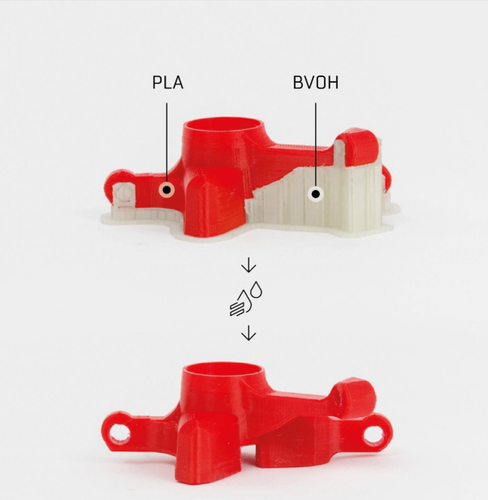

The water-soluble support material - the support of the PET and PLA three-dimensional model is printed from a water-soluble material, which makes it possible to remove the support in a simple manner.
Easy peeling support material - PP, nylon and Smart ABS printed on easily peelable support material。
P255 double extrusion head Exchangeable heating bed

The ceramic heated bed creates a natural texture at the bottom of each printout, which makes them easy to remove.

Interchangeable heated bed - separate heated bed for quick change of printer heated bed.

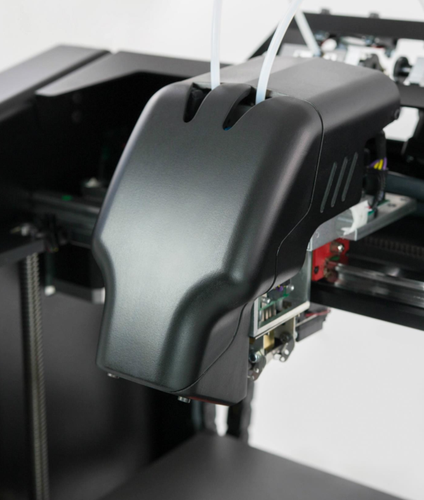

P255 double extrusion head
Pluggable double extrusion head
Double extrusion head module-Two separate heated ends can be printed with the model and support material. Printouts are more accurate by enhancing the mechanical blockage of the inactive heating end and nozzle.
Fast extrusion head exchange system - PUSH The solution replaces the extrusion head in seconds without the use of any tools.
3DGence R&D is working on new nozzle sizes that are compatible with all DOUBLEP255 printers.

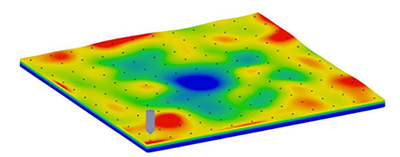

P255 double extrusion head Automatic calibration platform
No need for the user to manually calibrate the device
Thanks to the special sensor, the 3D printer scans the hot bed and stores a map of the points, and the device detects any surface violations. Hot bed measurements are done automatically. This solution significantly improves quality and eliminates the problem of printout adhesion
。

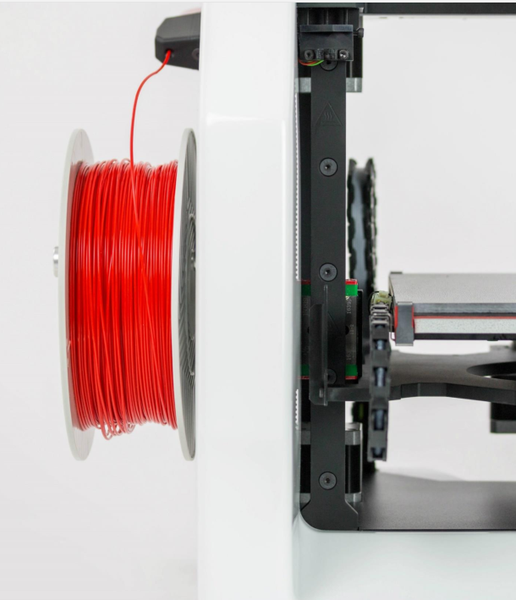

P255 double extrusion head
Material flow control system
The printer can control wire flow using a dual independent wire sensor. The extrusion quality measurement system is equipped with automatic error detection to continuously monitor the quality of each printout.
Wire end sensor-The 3D Gence DOUBLE P255 will automatically pause the printout if there is a shortage of material in the feed system.

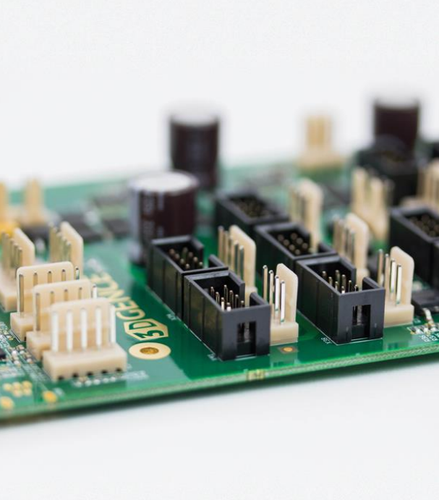

P255 double extrusion head Special electrical components
 The 3DGence Titanium features two levels of thermal protection for the extrusion head and three levels of thermal protection for the hot bed. The electronics are also equipped with circuit and overload protection. Dedicated intelligent stepper motor controllers - their use makes the printer run quieter and positioning more precise.

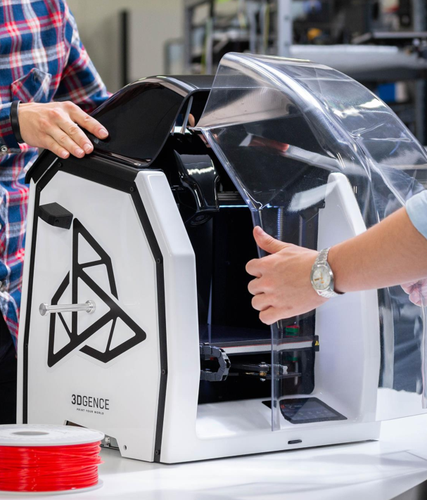

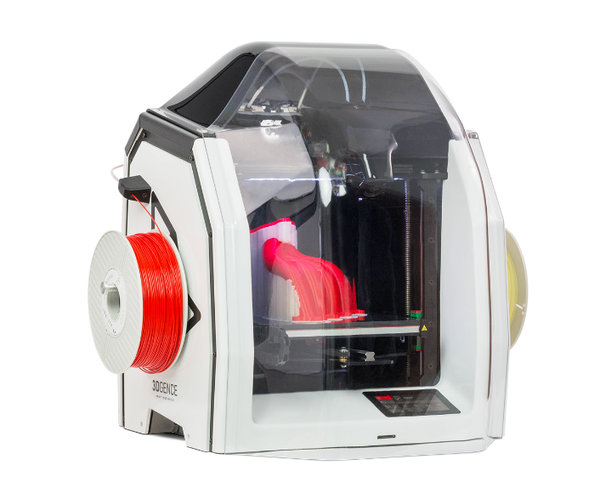

P255 double extrusion head Closed cover
Using a thermoformed enclosure you can: - printing on shrink-sensitive materials such as ABS, - Maintain a stable temperature in the 3D printer molding space
Technical Parameters
Size and weight
Printer includes material carrier635*520*525mm
Printer with cover635*564*563mm
Transport box size550*460*640mm
Printer weight26kg
Shipping weight32 kg (including accessories)
temperature
Operating temperature15-32°C
storage temperature0-32°C
Electrical Specifications
input Output220-230V, 2.6A 50-60Hz
power600w
connectionUSB,SDcard
Print
Printing technologyFFF (fused wire forming)
Printing size190*255*195mm
Layer resolution0.02mm
Number of print nozzles2
Nozzle diameter0.4/0.4mm
Wire diameter1.75mm
Model materialPLA,PET,PP,NYLON,Fiberflex 40D (elastic),Smart ABS
Support materialBVOH,HIPS
compatibilityPLA+BVOH,PET+BVOH,PP+HIPS,NYLON+HIPS,SmartABS+HIPS
Extrusion head temperature270°C（highest）
Hot bed temperature160°C（highest）
Material flow control systemHave
Wire sensorHave
Mechanical construction
framePowder coated steel, outer casing: ABS
Molded sheet materialHeating ceramic plate
Exchangeable hot bedhave
Fully enclosed enclosure

have

XY positioning accuracy6μm
Z positioning accuracy0.4μm
Software
Layered software3DGence Slicer
Support file format.stl，.3mf，.obj.jpg，.bmp
operating systemWindows，macos
