EVO Laser scanning head parameters

EVO-X 25

EVO-X 50

EVO-X 100EVO-X+ 25EVO-X+ 50EVO-X+ 100

Line width (mm)


short23

middle25

long29


short40

middle50

long60

short59

middle100

long144

short23

middle25

long29

short40

middle50

long60

short59

middle100

long144

Working distance (mm)


short53

middle66

long79


short65

middle95

long125

short125

middle240

long390

short53

middle66

long79

short65

middle95

long125

short125

middle240

long390

Measuring the depth

of field (Z) (mm)

26

60

2652660265

Accuracy of

measurement (3σ) (μm)

12

24

4861224

Repeat accuracy(3σ) (μm)

12

24

4861224

resolution(μm)

19

39

78193978
Imaging frequency (Hz)100HZ（128000point/s）300HZ（384000point/s）
Laser powerMax 8mW
Stripe points1280point/s
Laser head weight(g)500
Laser levelclass 2M

Protection level

（Only the laser）

IP65(Dust and water)

Electromagnetic

compatibility（EMC）

EN61326-1：2006-01 DIN EN 55011：2007(group1, class B) EN 610006-2：2006-03

Operating temperature

（Only the laser）

0℃-45℃
Power24VDC,500mA IEEE802.3af class2,Ethernet power supply

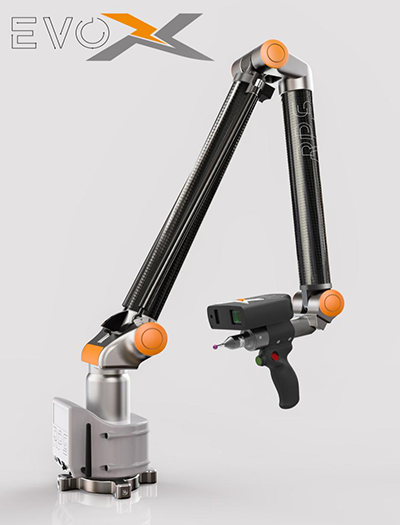

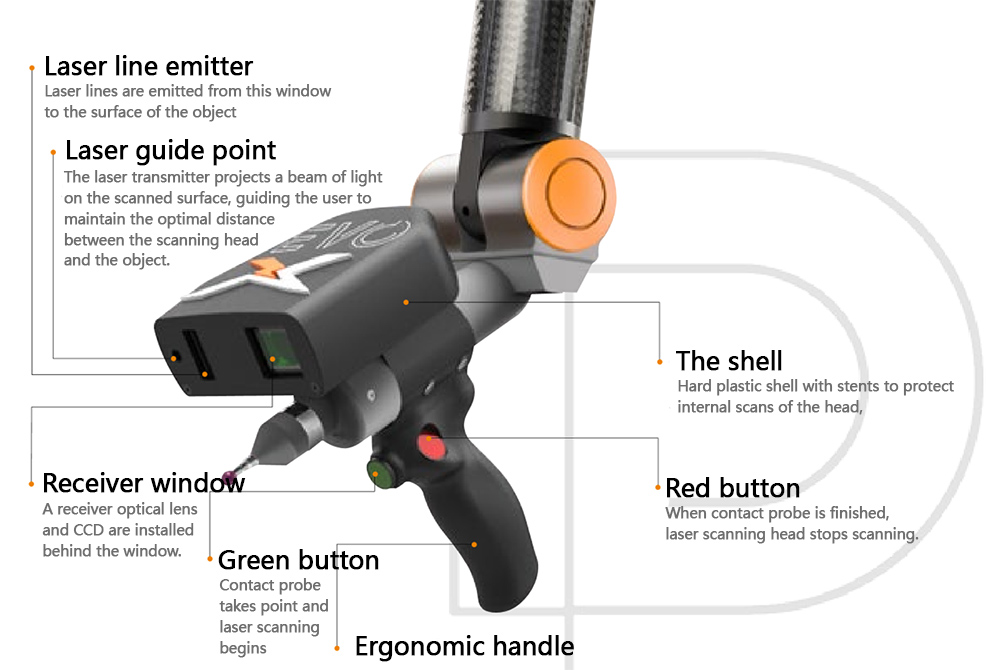

Italy's RPS Metrology's ev0-x scanning measurement arm has established the standard for a new generation of joint arm measurement machines. It comes with a contact probe and a portable joint arm measuring machine integrated with a laser scanner for detection and reverse engineering. Due to extremely stable mechanical design, lightweight construction and automatic temperature compensation, it does not require calibration and preheating. No one needs long training to use EVO-X. It has a built-in high-capacity battery, 12 hours for contact measurement, 8 hours for laser scanning, and wireless WIFI, which can be directly used for workshop measurement.
Evo-x high quality laser scanning technology can scan highlighted, reflective, black and composite surfaces. There is no need to do anything on the scanned surface. The evo-x's laser head USES blue and red lasers.
Technical features

EVO Series Portable Three-Dimensional Laser Scanner for Joint Arm

Hotline：020-28397752
1) portability: it is easy to carry and meet the needs of measurement anytime and anywhere
2) stable and reliable, all joints using titanium alloy and with high precision bearings, arm with carbon fiber materials, the stability of equipment is greatly increased
3) built-in bluetooth wireless communication, avoiding cable winding.
4) built-in lithium battery, providing up to 12 hours of power supply.
5) complete function: can be geometrical element, 3 d coordinate and shape tolerance, curve surface measurement and scanning, reverse engineering, CAD mathematical model and the actual parts than in testing, assembling, detecting jig, fixture and pipe measurement, metal thin-walled parts measurement
6) no dead Angle measurement: the internal and external balance design, 6-7 degrees of freedom of joints allow you to realize the measurement of arbitrary spatial point positions and hidden points
7) wide measuring range: you can choose 1.2 m to 7 m measuring range, and can extend to a wider range of measurement
8) temperature compensation system: built-in temperature and humidity sensors ensure high precision and stable measurement under any temperature and humidity
9) can be used with a variety of software: PowerINSPECT, Polyworks, Geomagic Control X, Design X, etc
EVO laser scanning head whole machine system +EVO7 axis joint arm technical parameters
EVO7-XMeasuring rangeEVO-X 25 laserEVO-X 50 laserEVO-X100 laserThe weight
EVO7 202.0m0.038mm0.044mm0.057mm8.3KG
EVO7 252.5m0.047mm0.053mm0.066mm8.6KG
EVO7 303.0m0.059mm0.065mm0.078mm9.0KG
EVO7 404.0m0.084mm0.090mm0.103mm9.4KG
EVO7 505.0m0.125mm0.131mm0.144mm11.1KG
EVO7 606.0m    0.149mm0.155mm0.168mm13.4KG
EVO7 707.0m0.185mm0.191mm0.204mm14.6KG
